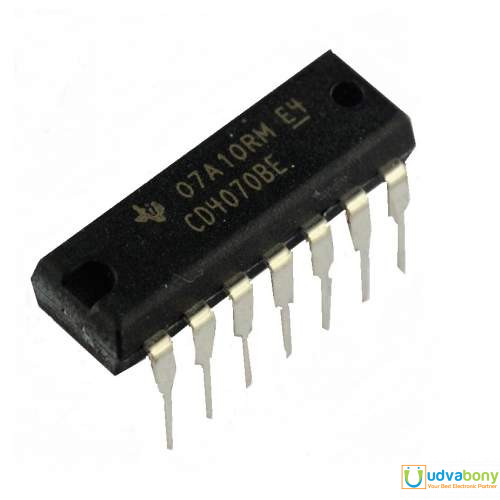

آي سي 4070 تغليف DIP (بوابة XOR رباعية بمدخلين)

Product Overview

The 4070 DIP Quad XOR Gate is a CMOS logic IC that contains four independent XOR gates in a single package. It operates with a wide voltage range, making it ideal for digital logic design, arithmetic circuits, parity checking, and signal processing applications. Designed for reliable performance, the IC features low power consumption and high noise immunity, ensuring stable operation in various electronic circuits.

Key Features:

• Quad XOR Gates – Contains four independent XOR gates.


• Wide Operating Voltage – Supports 3V to 15V for flexible applications.


• Low Power Consumption – CMOS technology ensures energy efficiency.


• High Noise Immunity – Provides stable operation in digital circuits.


• Standard DIP Package – Easy to use with breadboards and PCBs.


• TTL & CMOS Compatibility – Works seamlessly with various logic families.

Technical Specifications:

• Logic Type: Quad XOR Gate


• Number of Gates: 4


• Operating Voltage: 3V – 15V


• Input Voltage Range: 0V – Vcc


• Propagation Delay: Approx. 50ns (at 5V)


• Output Current: ±2.5mA (at 5V)


• Power Consumption: Low power CMOS design


• Package Type: DIP-14


• Temperature Range: -40°C to 85°C

Applications:

• Digital Logic Design – Used in arithmetic and control circuits.


• Parity Checking & Generation – Helps detect transmission errors.


• Signal Processing – Useful for modulating and demodulating signals.


• Boolean Logic Operations – Performs exclusive OR functions.


• Educational & DIY Projects – Ideal for learning and prototyping logic circuits.

Why Choose 4070 DIP Quad XOR Gate?

The 4070 DIP Quad XOR Gate provides a cost-effective, reliable, and easy-to-use solution for digital logic applications, making it a valuable component for engineers, students, and hobbyists.
