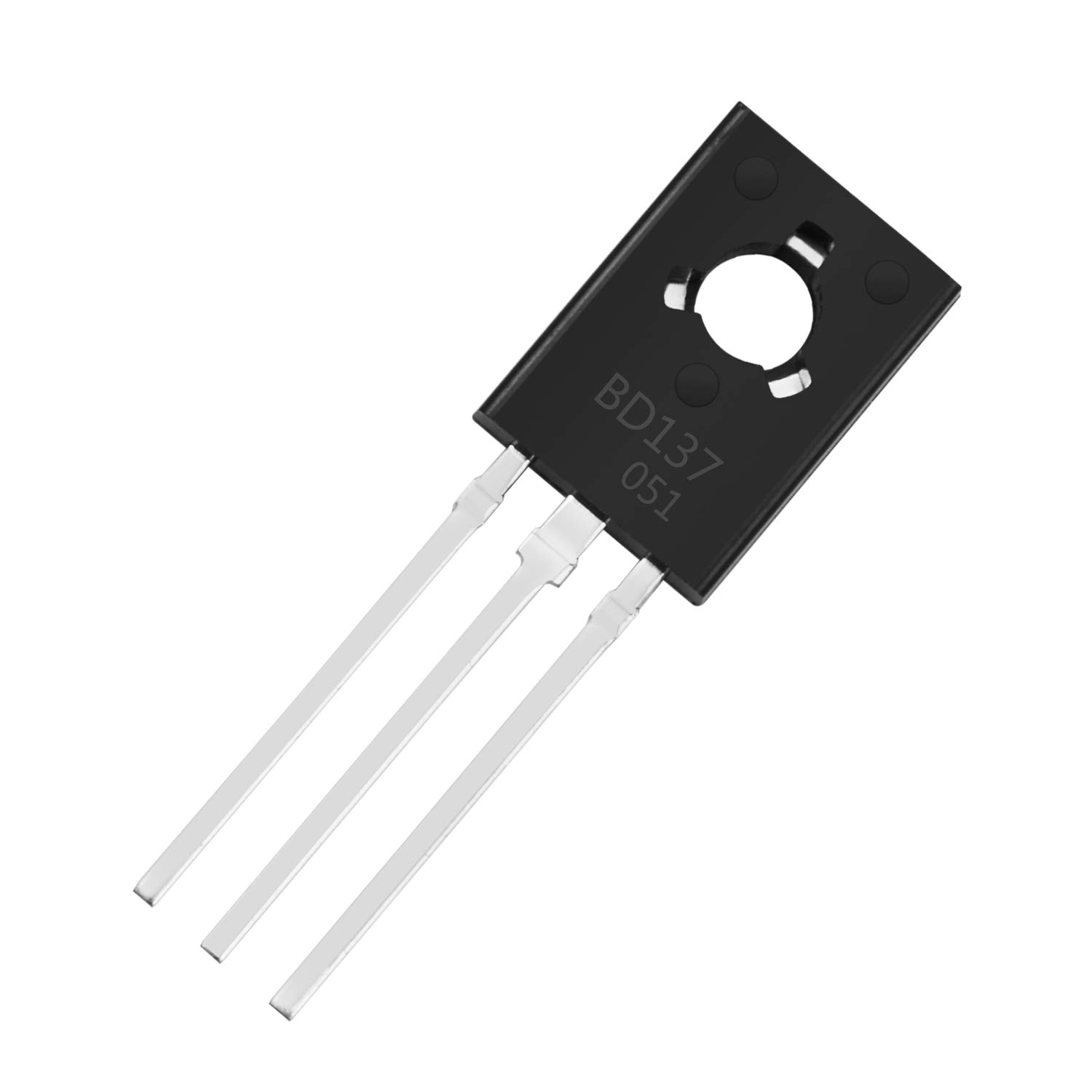

ترانزستور باور BD137 NPN 60 فولت 1 أمبير 12 وات

Features/Specs:

• Product Type: BJTs – Bipolar Transistors


• Product Category: Bipolar Transistors – BJT


• Transistor Polarity: NPN


• Configuration: Single


• Collector- Emitter Voltage VCEO Max: 60 V


• Collector- Base Voltage VCBO: 60 V


• Emitter- Base Voltage VEBO: 5 V


• Collector-Emitter Saturation Voltage: 500 mV


• Maximum DC Collector Current: 1.5 A


• Pd – Power Dissipation: 1.25 W


• Continuous Collector Current: 1.5 A


• Minimum Operating Temperature: -55°C


• Maximum Operating Temperature: +150°C


• Mounting Style: Through Hole


• Package/Case: TO-126-3

Applications:

• Audio Amplifiers


• Switching Loads under 1.5A or 1500mA


• Battery Chargers Circuits


• Power Supply Circuits


• Motor Driver Circuits


• Darlington Pairs
