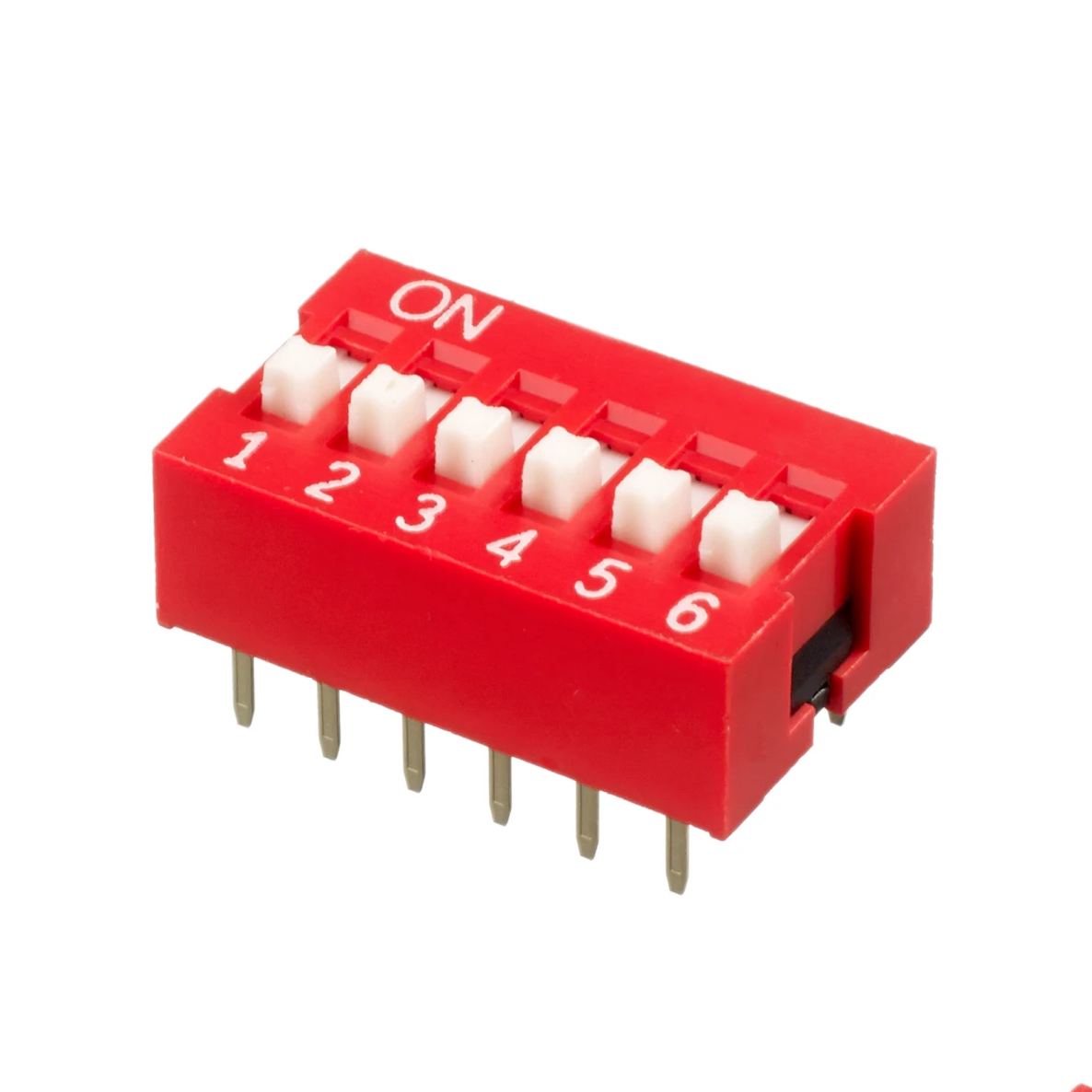

It is a 2.54mm Pitch 6 Way DIP Slide Switch. The slide switch is widely used in the modulation of the CPU, wireless communication, broadcast, and TV, in the software programming for the automated equipment, and in the self-control of the NC equipment and other instruments and meters.
Specifications
| Voltage(V) | 24VDC |
| Operating Current (mA) | 25 |
| No. of Pins | 6 |
| Pin Spacing (mm) | 2.54 |
| Mounting Type | Through Hole |
| Operating Temperature Range (°C) | -40 to 85 |
| Mech. & Electrical Lifecycle | ≈ 2000 |
| Length (mm) | 16.6 |
| Width (mm) | 10 |
| Height (mm) | 7 |
